Product details

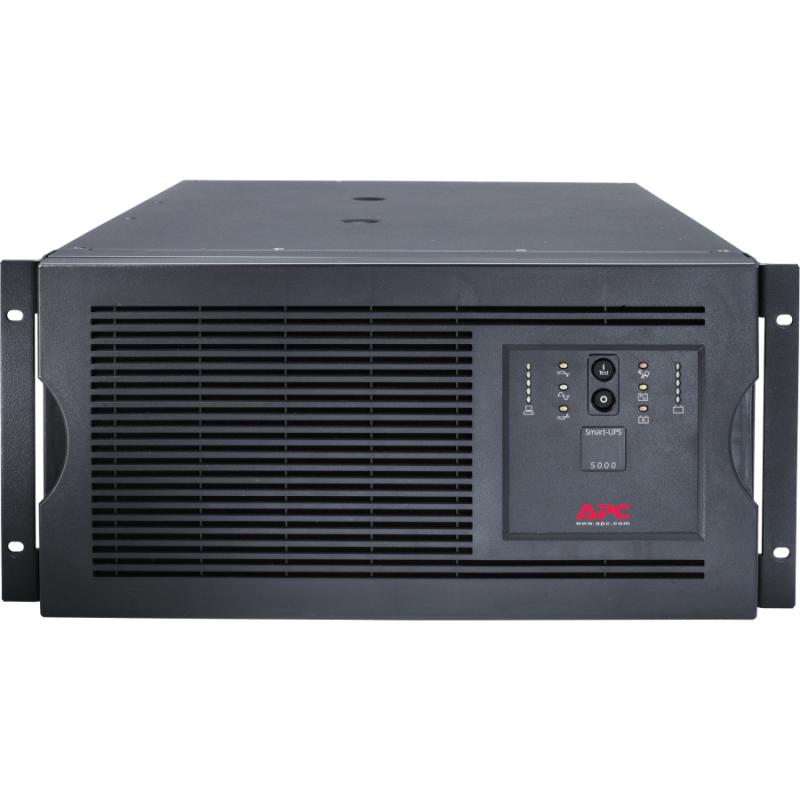

APC Smart-UPS 5000VA 230V Rackmount/Tower

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, Web/SNMP management card

Output power capacity

4.0kWatts / 5.0kVA

Rack Height

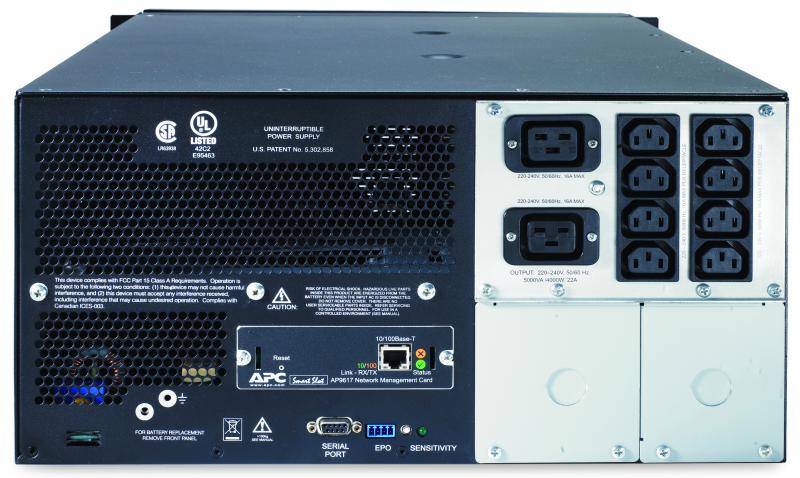

Output Connections

(4) IEC Jumpers (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

Hard wire 3-wire

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

96.0 %

Output Voltage Distortion

Less than 5 % at full load

Output Frequency (sync to mains)

47 – 53 Hz For 50 Hz nominal Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

2 ms typical : 4 ms maximum

Informații suplimentare

Quick installation guide	Yes
Storage relative humidity (H-H)	0 – 95%
Products per master (outer) case	1 pc(s)
Rack mount kit	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Line Interactive
Capacitate putere UPS	4000W
Capacitate Rack:	5U
Ecran LCD:	Da
Port USB	Nu
UPS topology	Line-Interactive
Number of output phases	1
Waveform	Sine
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Non-operating altitude	0 – 15000 m
Nominal output voltage	230 V
Nominal input voltage	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Automatic Voltage Regulation (AVR)	Yes
AC outlet types	C13 coupler, C19 coupler
Form factor	Rackmount/Tower
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Auto-restart	Yes
Surge energy rating	480 J
AC outlets quantity	10 AC outlet(s)
Output power capacity	5 kVA
Operating altitude	0 – 9000 m
Efficiency	96%
Hold time (min)	2 ms
Output power	4000 W
Output frequency regulation	47 – 53 Hz
Hold time (max)	4 ms
Power plug	Hard Wire 3-wire
Number of output IEC jumpers	4
Battery capacity	1632 VAh
Typical backup time at full load	9.4 min
Typical backup time at half load	26.7 min
Rack capacity	5U
Total carbon footprint (kg of CO2e)	4487.43
Operating temperature (T-T)	0 – 40 °C
Software CD	Yes
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Ethernet LAN (RJ-45) ports	0
Operating relative humidity (H-H)	0 – 95%
Harmonized System (HS) code	85078000
Battery life (max)	5 year(s)
Storage temperature (T-T)	-15 – 45 °C
Noise level	53 dB
Package depth	762 mm
Package width	610 mm
LED indicators	Battery replacement
Cables included	RS-232
Certification	C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
Width	483 mm
Depth	660 mm
Height	222 mm
Weight	97.7 kg
Package height	635 mm
Package weight	106.8 kg
Products per pallet	4 pc(s)
Packaging content	Web/SNMP Management Card
Producator	APC
Garantie	24
