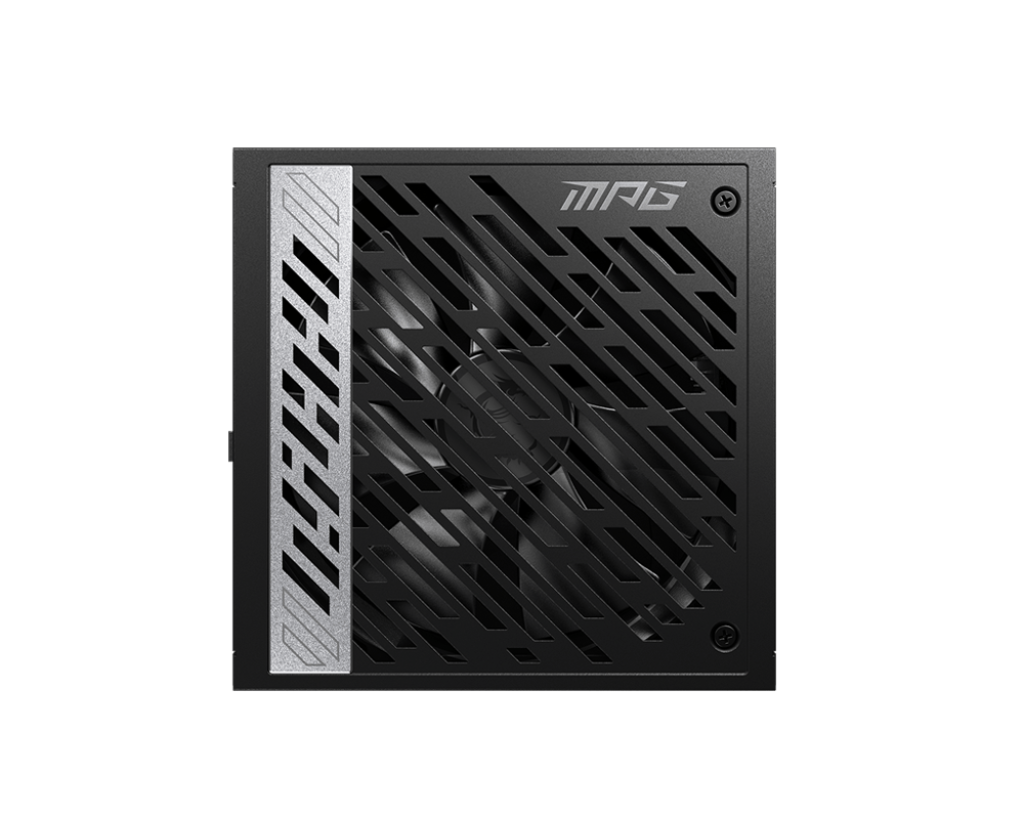

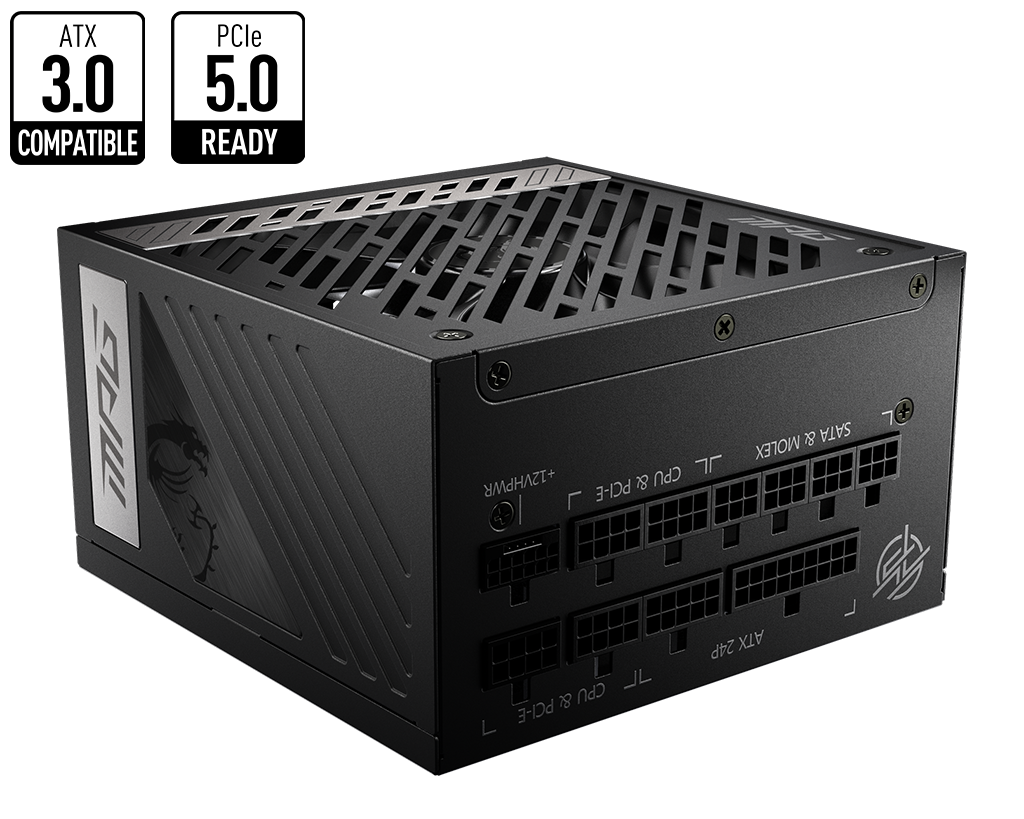

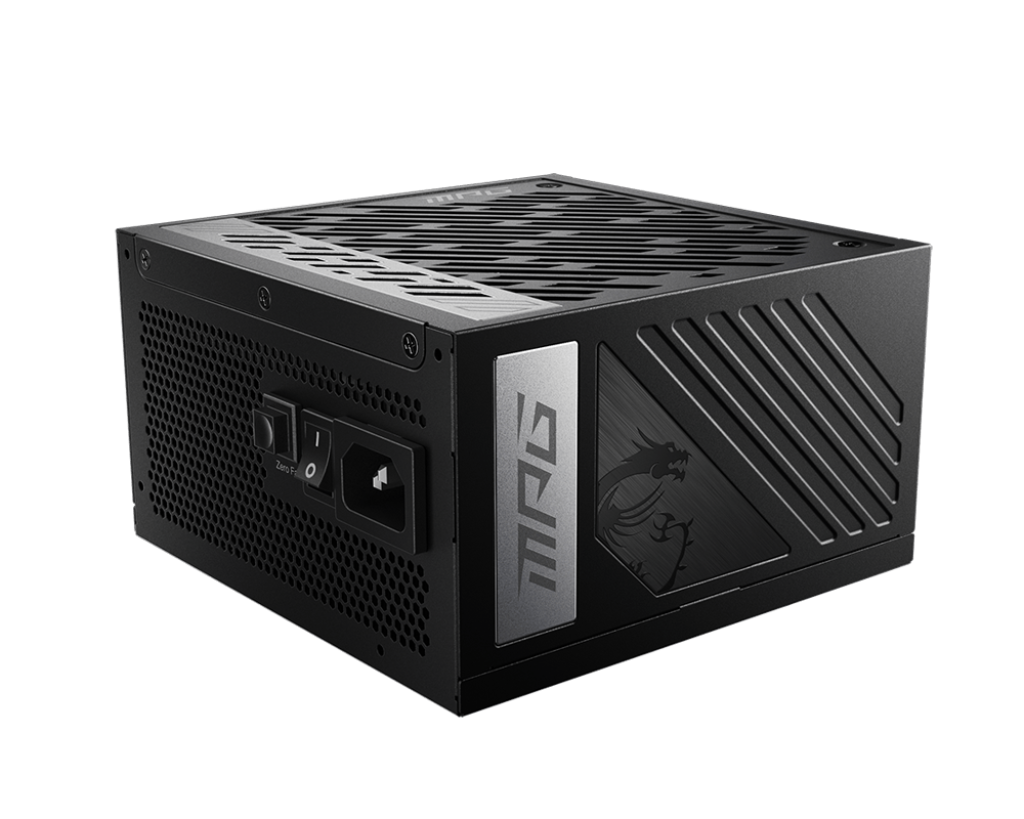

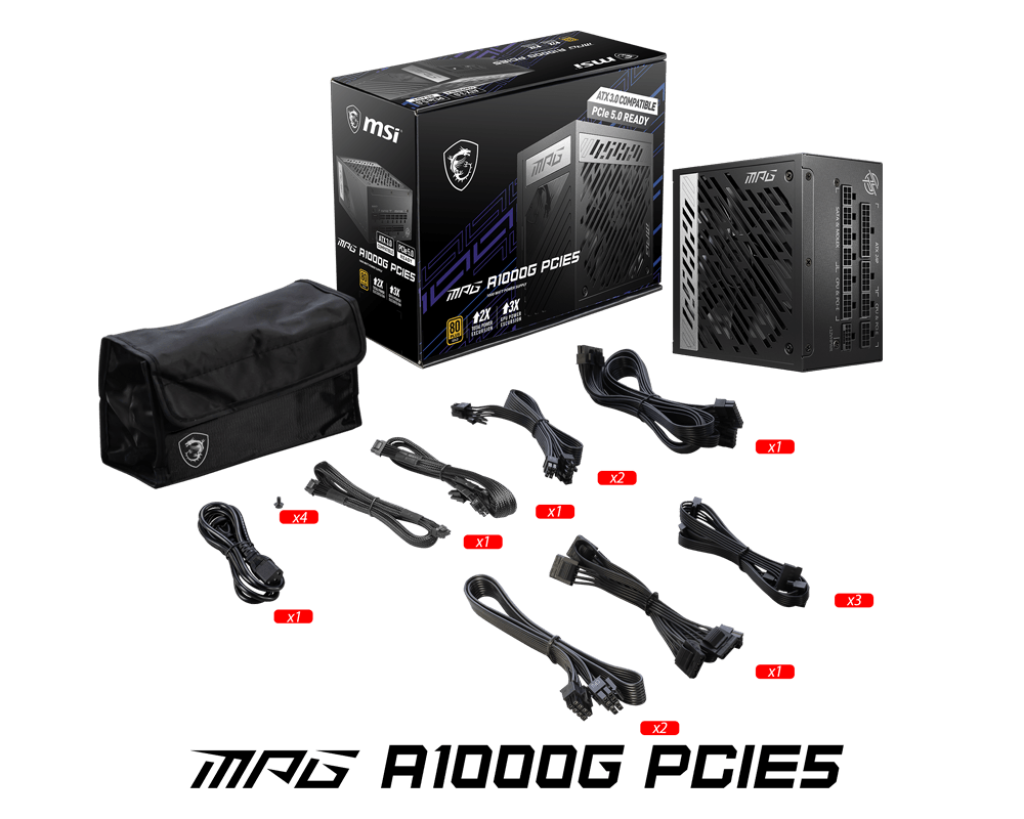

Sursa MSI MPG A1000G PCIE5 80 PLUS GOLD

Recenzii
Stoc epuizat

1.407,99 lei

  • Livrare rapida.
  • Produse la comanda.
  • Preluare produse defecte in service
SKU: MPG A1000G PCIE5

Product details

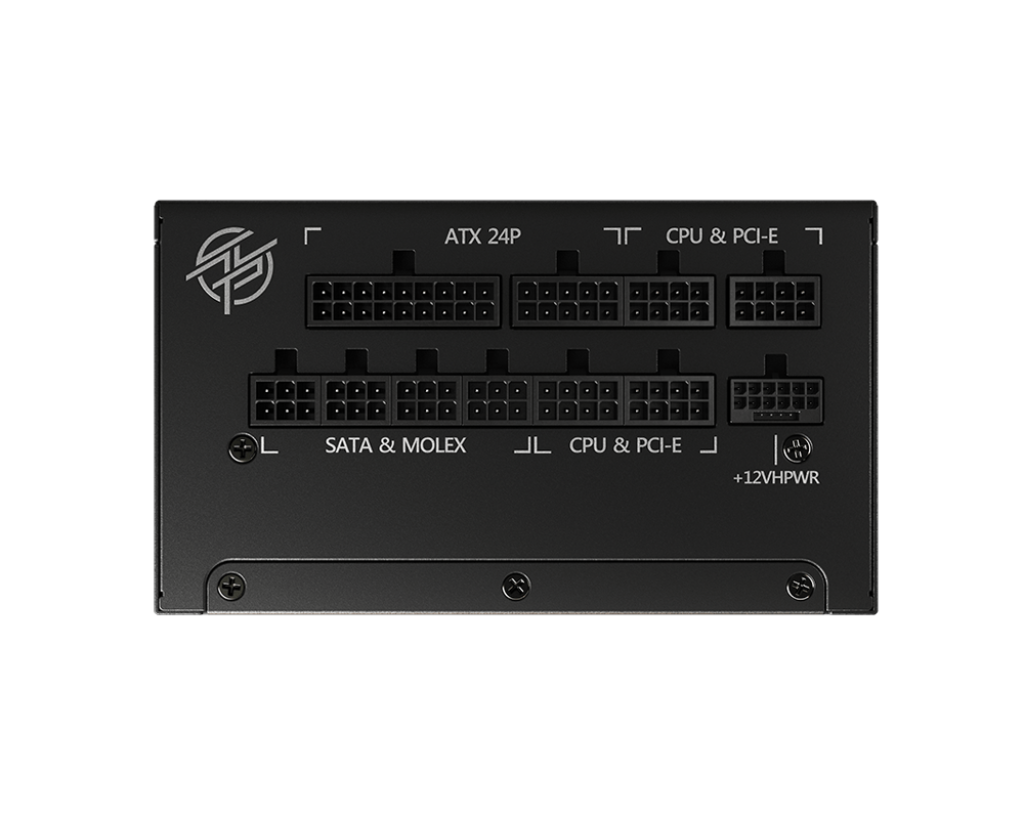

Sursa MSI MPG A1000G PCIE5 80+ GOLD Efficiency Rating 80 PLUS Gold (up to 90%) Modular Yes (fully modular) Fan Size 135 mm Fan Bearing Fluid Dynamic Bearing Dimensions (DxWxH) 150 x 150 x 86 mm PFC Type Active PFC Input Voltage Range 100~240 VAC Power Watt 1000W Power Excursion 2000W (*up to 200% of the PSU’s rated power for 100μs) Input Frequency Range 50~60 Hz Protection OCP / OVP / OPP / OTP / SCP / UVP ATX (24 pin) 1 EPS (4+4 pin) 2 PCI-E 5.0 (16 pin) 1 (600W) PCI-E (6+2 pin) 6 SATA (15 pin) 12 MOLEX (4 pin) 4 FDD (4 pin) 1

Informații suplimentare

PSU Type

ATX

Number of fans

1 fan(s)

Illumination

No

Peripheral (Molex) power connectors (4-pin)

4

Purpose

PC/Server

Conectivitate:

Full – Modular

Iluminare RGB

Nu

Certificare 80 Plus

80 PLUS Gold

Motherboard power connector

20+4 pin ATX

EPS power connector (4+4 pin)

Yes

Power supply unit (PSU) form factor

ATX

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Motherboard power cable length

60 cm

Cabling type

Fully-Modular

ATX version

3.0

Power Factor Correction (PFC) type

Active

Floppy disk drive connector

Yes

80 PLUS certification

80 PLUS Gold

Bearing technology

FDB

Efficiency

90%

Number of SATA power connectors

12

PCI Express power cable length

75 cm

EPS power connector (8-pin)

No

Fan diameter

13.5 cm

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Combined power (+3.3V)

120 W

Combined power (+5V)

120 W

PCI Express power connectors (6+2 pin)

6

Max output current (+3.3V)

22 A

Max output current (+5V)

22 A

Total power

1000 W

Combined power (+12V)

1000 W

Max output current (+12V)

83.5 A

SATA power cable length

500,650,700,850 mm

Peripheral (Molex) power cable length

1100,500,650,700,850 mm

EPS cable length

70 cm

PSU-Power

1000 W

PFC

Active

Width

150 mm

Depth

150 mm

Height

86 mm

AC input voltage

100 – 240 V

Producator

MSI

Garantie

120
