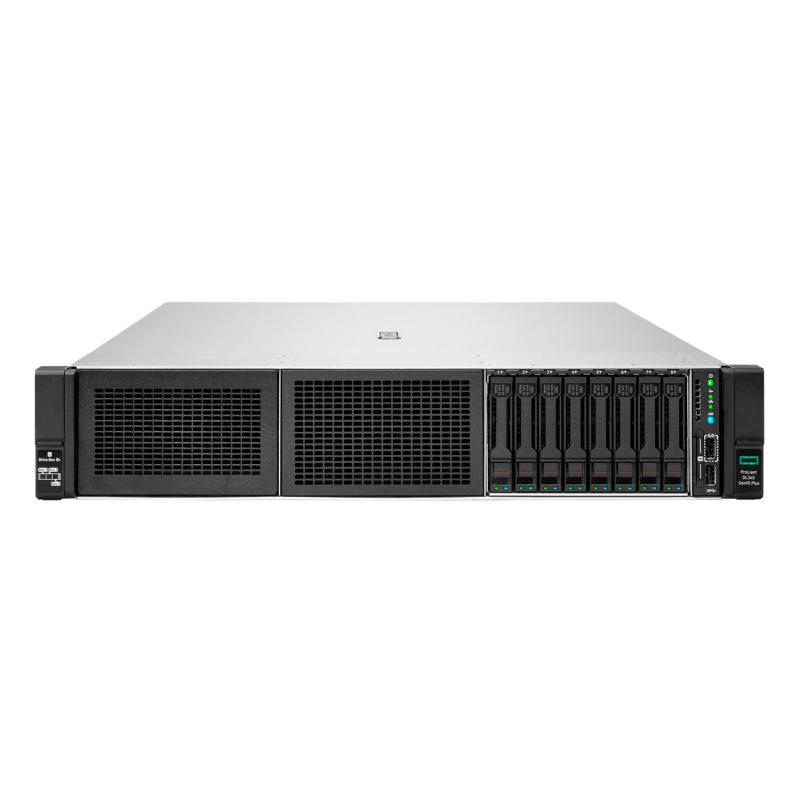

Product details
Lifecycle
- Obsolete Date 26-05-2025
- End of support date 31-05-2029
Specifications
- Processor name AMD EPYC™ 7313P (16 core, 3.0 GHz, 128 MB L3, 155W)
- Included memory 32 GB (1×32 GB, 3200 MT/s)
- Network controller Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
- Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)
- Product dimensions (metric) 8.75 x 44.54 x 71.1 cm
- Product dimensions (imperial) 3.44 x 17.54 x 28 in
- Weight 16.33 kg
- Weight 36.00 lb
- Expansion slots 4 maximum, for detailed descriptions refer to the QuickSpecs
- Processor number 1 processor included
- Processor speed 3.0 GHz
- Form factor 2U
- System fan features 6x Standard Fans
- Optical drive type Optional, None ship standard
- Included drives None ship standard, 8 SFF supported
- Storage controller HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller
- Processor cache 128 MB L3
- Processor core available 16 core
- Memory type HPE DDR4 Smart Memory
- Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support.
- Power supply type 1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Quickspecs
Overview
Do you need a single socket server with a 2U rack storage capacity to address your data intensive workloads? Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL345 Gen10 Plus server offers the 3rd Generation AMD EPYC™ Processors, delivering excellent performance on a single socket design. Equipped with PCIe Gen4 capabilities, HPE ProLiant DL345 Gen10 Plus server offers improved data transfer rates and higher networking speeds. Enclosed in a 2U server chassis, this one-socket server improves storage capacity across SAS/SATA/NVMe storage options, making it an ideal solution for key applications such as structured/unstructured database management.
What’s new
- Provide versatility and upgradeability for storage with one processor in a 2U rack enclosure.
- Powered by the 3rd Generation AMD EPYC™ Processors with more compute performance compared to the previous generation.
- Enhanced storage management with Tri-mode storage controllers supporting NVMe/SAS/SATA drives.
Features
When it’s time to retire or repurpose an Hewlett Packard Enterprise ProLiant server, one button secure erase speeds and simplifies the complete removal of passwords, configuration settings and data, preventing inadvertent access to previously secured information.
Intelligent Automation
The HPE ProLiant DL345 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.
HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.
HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle through an uncompromised supply chain.
HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identifies and contains malicious code, and protect healthy servers.
The HPE ProLiant DL345 Gen10 Plus server supported by HPE GreenLake simplifies IT infrastructure management across your entire hybrid estate. With 24×7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.
Automation and software defined control reduces time spent on provisioning and maintenance, and reduces deployment time.
Delivered as-a Service
Tri-mode storage controllers enhance storage management coupled with an advanced storage RAID solution.
Workload Optimization
Harness major compute power: The HPE ProLiant DL345 Gen10 Plus server supports the 3rd Generation AMD EPYC™ processors with up to 64-core 280W.
It provides up to 128 lanes of PCIe Gen4 improves I/O throughput and reduces latency.
Rapidly deploy a broad portfolio of cloud services such as machine learning operations (ML Ops), containers, storage, compute, virtual machines (VMs), data protection, and more. Workload-optimized, preconfigured solutions can be delivered to your facility quickly, decreasing your downtime.
Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.
It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
360 Degree Security
The HPE ProLiant DL345 Gen10 Plus server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC) to manage secure boot, memory encryption, and secure virtualization.
Media
Avoid Storage Surprises – High Availability SMB Solution
A low-cost scalable software-defined storage. Simple to deploy, manage, and support with HPE SMB Solutions for HCI with Windows Server 2019 Storage Spaces Direct. Data protection and disaster recovery with enterprise-grade security and availability
Conquering SMB Challenges with the Help of HPE and AMD
Being a modern small business can often bring its own unique set of challenges. HPE ProLiant servers powered by AMD EPYC processors help answer some of those challenges with high-performing solutions that are secure and tailored to your workload needs.
Help Protect Your Data with HPE and AMD
Not all security is built the same. Don''t get caught with vulnerabilities in a world full of data threats. HPE ProLiant servers with AMD EPYC processors have layers of security features that help protect your data to help ensure that your valuable data stays just that – your data.
HPE ProLiant DL345 Gen10 Plus virtual tour animated video
HPE ProLiant DL345 Gen10 Plus virtual tour animated video.
HPE and AMD: Helping customers accelerate their digital transformation
HPE & AMD deliver solutions to help customers empower their workforce, deploy resilient IT solutions, and extract insights from critical data; and accelerate their digital transformation, leverage and consume solutions as-a-service.
