ASUS TUF GAMING B760M-PLUS D4. Processor manufacturer: Intel, Processor socket:

Recenzii
10 în stoc

1.171,99 lei

  • Livrare rapida.
  • Produse la comanda.
  • Preluare produse defecte in service
SKU: 90MB1DI0-M1EAY0

Product details

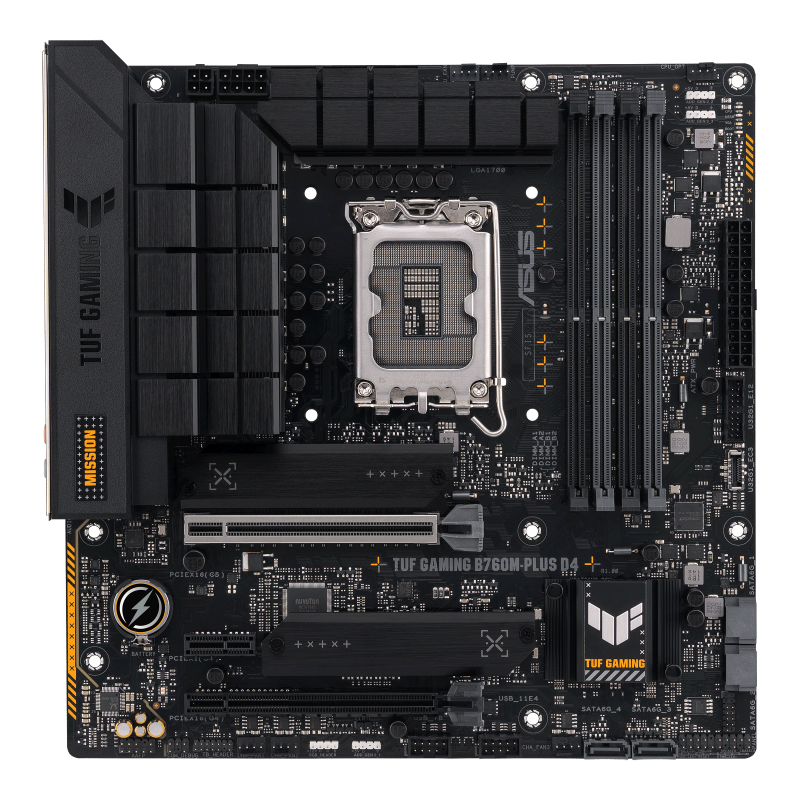

ASUS TUF GAMING B760M-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Informații suplimentare

Wi-FI

Yes

RAID support

Yes

Component for

PC

Memory channels

Dual-channel

Processor manufacturer

Intel

Ethernet LAN

Yes

HDMI ports quantity

1

Maximum internal memory

128 GB

USB 2.0 ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

Audio output channels

7.1 channels

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Supported storage drive types

HDD & SSD

Supported memory types

DDR4-SDRAM

Number of M.2 (M) slots

2

S/PDIF out port

Yes

DisplayPorts quantity

1

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

Windows operating systems supported

Windows 10 x64, Windows 11

Model Chipset

B760

Gaming

Da

Format

Micro-ATX (mATX)

Soclu Procesor

Socket 1700

Tip Memorie:

DDR4

Numar sloturi memorie

4

Memorie maxima

128 GB

Tip slot interfata grafica

PCIe 5.0 x16

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Da

Bluetooth

Nu

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

2

RJ-45 LAN

1

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Motherboard form factor

micro ATX

BIOS type

UEFI AMI

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

12V power connector

Yes

Clear CMOS button

Yes

ECC сompatibility

Non-ECC

Number of storage drives supported

6

Motherboard chipset

Intel B760

BIOS memory size

128 Mbit

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Peripheral (Molex) power connectors (4-pin)

1

Number of chassis fan connectors

3

PCI Express x1 (Gen 4.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Supported memory clock speeds

5333 MHz

USB Type-C

N/A

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

Cables included

SATA

Width

244 mm

Depth

244 mm

Producator

ASUS

Garantie

24
