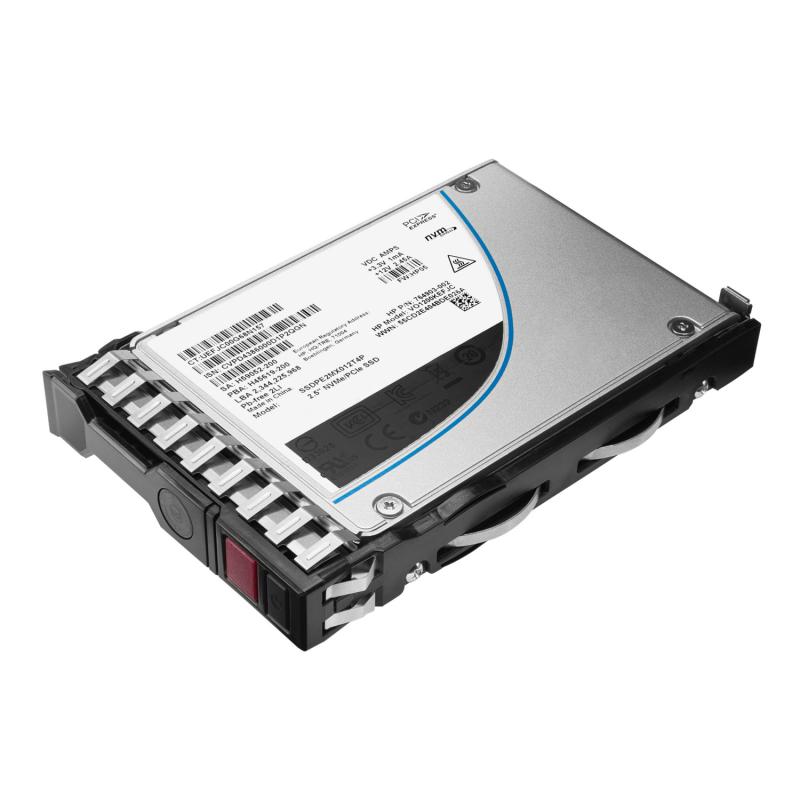

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF SCN

Lifecycle

• Obsolete Date 31-03-2025
• End of support date 30-09-2027

Specifications

• Power (Watts) 17.9
• Endurance DWPD (Drive Writes Per Day) 3
• Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
• Height 15mm
• Lifetime writes 35,040
• Write IOPS Random Write IOPS (4KiB, Q=16) 270,000 Max Random Write IOPS (4KiB) 280,000@Q128
• Read IOPS Random Read IOPS (4KiB, Q=16)=165,000 Max Random Read IOPS (4KiB)=720,000@Q256
• Plug type Hot Pluggable
• Interface NVMe
• Workload Mixed Use
• Drive form factor SFF
• Carrier type Smart NVMe Carrier
• Capacity 6.4 TB
• Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.
• Weight 1.508 lb
• Weight 0.68 kg
• Product dimensions (imperial) 8.63 x 9 x 5.75 in
• Product dimensions (metric) 21.92 x 22.86 x 14.61 cm

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs

Overview

Do you need to accelerate the performance of your mixed use applications? HPE NVMe High Performance Mixed Use (MU) SSDs are best suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data intensive applications. NVMe High Performance MU SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance MU SSDs deliver high performance and lower latency data transfers from storage significantly faster than SAS or SATA SSDs. It utilizes the high bandwidth of PCIe Gen4 in select servers for mixed use workloads such as Big Data analytics, HPC, and virtualization.

What’s new

• Offer HPE 1.6 TB, 3.2 TB, and 6.4 TB NVMe High Performance Mixed Use SFF SSDs.

Features

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

HPE NVMe High Performance Mixed Use (MU) Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications, and virtualization.

Achieve higher IOPS and lower latency to enhance the performance of your data center.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

HPE NVMe PCIe Gen4 U.3 Dynamic SSDs are 100% backwards compatible with NVMe U.2 SSD backplanes on selected HPE ProLiant servers.

HPE NVMe PCIe Gen4 U.3 SSDs deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.

HPE Continues to Enhance its SSD Portfolio by Offering NVMe PCIe Gen4 U.3 SSDs

Documents

• HPE Solid State Disk Drives QuickSpecs
