Product details
Lifecycle
- Obsolete Date 31-10-2026
Specifications
- Storage controller 2x 16 Gb Fibre Channel 4-port Controller
- Form factor 2U rack mount
- Capacity Maximum array raw capacity of 2.83 PB (all LFF) and 1.9 PB (SFF & LFF), depending on drive mix
- Warranty Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives and options carry their own warranty.
- Product dimensions (imperial) 3.5 x 17.5 x 20.0 in
- Storage expansion options 24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9 with any combination)
- Drive description Up to 12 HDD and/or SSD per base array
- Weight 5 kg
- Compatible operating systems Windows Server 2022; Windows Server 2019; Windows Server 2016; VMWare vSphere 6.7; Red Hat Linux 8; SuSE SLES 15; See HPE SPOCK for more details.
- Drive form factor LFF
- Host connectivity 16 Gb Fibre Channel
- Included drives 12x HPE MSA 20 TB SAS 12G Midline 7.2K LFF M2 1-year Warranty HDD
- SED Drives Supported No
- Included transceivers HPE MSA 16 Gb Short Wave Fibre Channel SFP+ 4-pack Transceivers
- Energy efficiency Energy Star Compliant
- Product dimensions (metric) 8.9 x 44.5 x 50.8 cm
- Weight 11 lb
Quickspecs
Overview

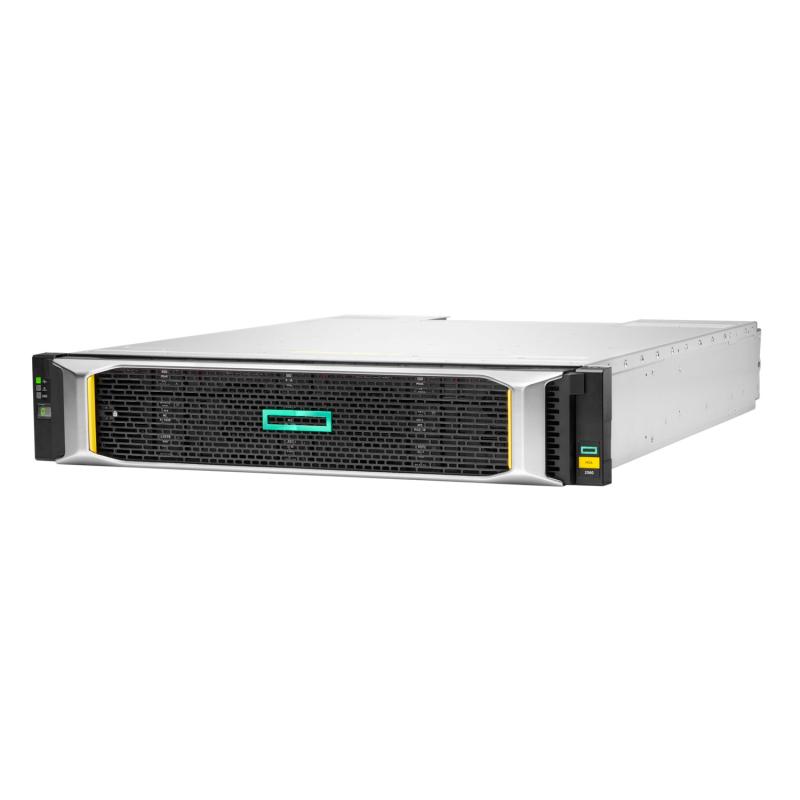

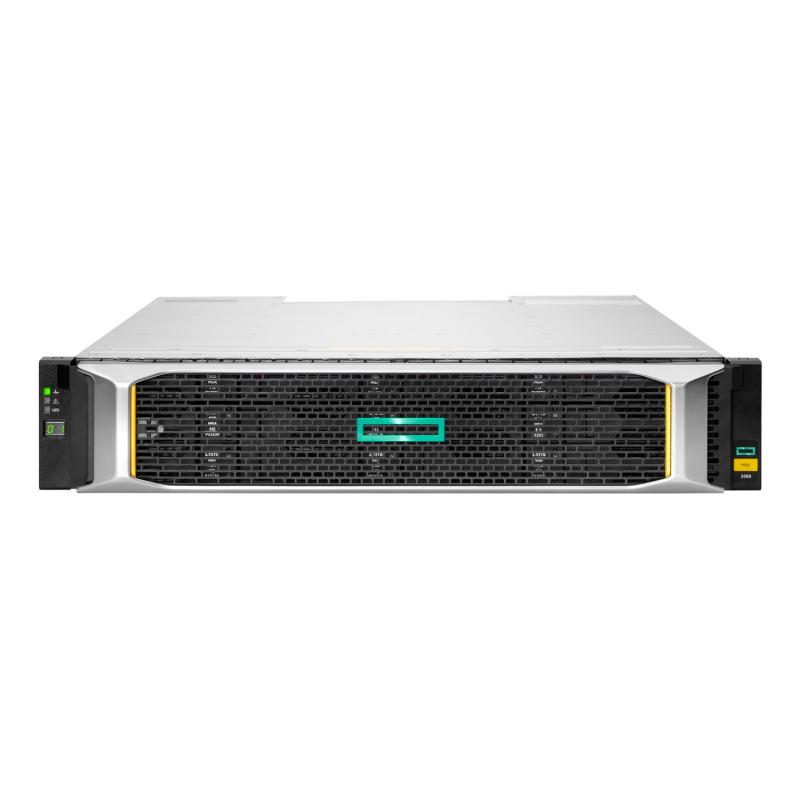

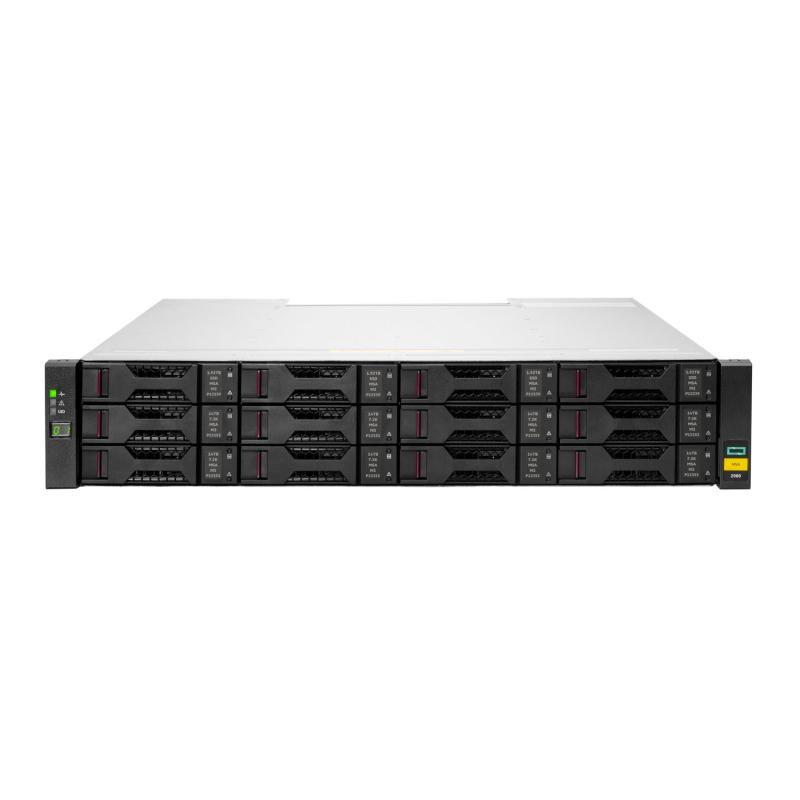

Is your company looking for easy-to-use, affordable, high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads. [1]
What’s new
- All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
- HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
Features
Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.
Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster
The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.
Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.
Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
Flexible, Modular Architecture That Facilitates Growth into the Future
The HPE MSA 2060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).
HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator
The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.
The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.
Accelerate Applications Affordably
The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses. [1]
