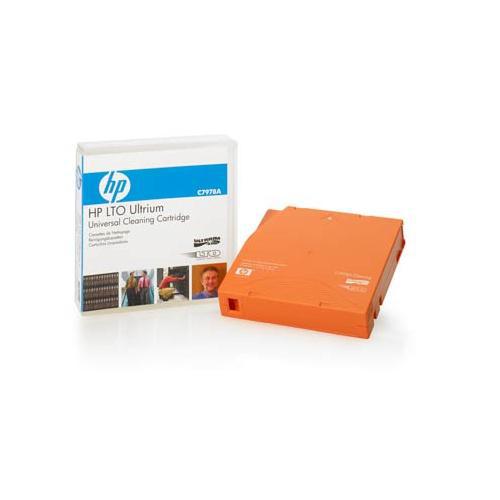

HPE Ultrium Universal Cleaning Cartridge

Lifecycle

• Obsolete Date 31-10-2028
• End of support date 31-10-2033

Specifications

• Base material Metal Particle
• Tape width 12.65 mm
• Product dimensions (imperial) 4.45 x 4.34 x1.1 in
• Weight 0.51 lb
• Tape length Not applicable
• Product color Orange
• Weight 0.23 kg
• Magnetic coercivity Not applicable
• Media format Not applicable
• Bit density Not applicable
• Product dimensions (metric) 11.3 x 11.02 x 2.79 cm
• Recording technology LTO-1 Ultrium, LTO-2 Ultrium, LTO-3 Ultrium, LTO-4 Ultrium, LTO-5 Ultrium, LTO-6 Ultrium, LTO-7 Ultrium, LTO-8 Ultrium
• Quantity per package 1

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

What’s new

• Massive increase in capacity—400% over the native capacity of LTO-7 (30 TB for LTO-10 versus 6 TB for LTO-7)
• Increase in native performance—possible to store 1.44 TB/hr using LTO-10 (full-height only)
• Built-in AES 256-bit encryption (IEEE1619.1) (LTO-5 through LTO-10)—granted FIPS140-2 Level 1 certification.

Features

HPE LTO Ultrium cartridge memory chip delivers faster access time and enhanced media monitoring.

Government agencies around the world recommend keeping copies of data offline. Using LTO technology from HPE storage lets you place data behind an airgap. It can help protect data from criminals using connected networks to try and encrypt both your primary and backup data.

Reliable Offline Medium that Creates an Air Gap to Keep Data Out of the Reach of Cybercriminals

Built-in AES 256-bit encryption (LTO-5 to LTO-10) allows you to provide additional security for data stored on tape. With LTO encryption (strengthened by the option to use WORM cartridges), even if those tapes fall into the wrong hands, the data they contain is protected from unauthorized access.

First time restore ensured with fewer media failures and disrupted backups, regardless of duty cycle or environmental conditions.

User write-on labels are no longer included with HPE Storage LTO Ultrium Cartridges.

Highest Capacity and Performance of any Comparable Tape Technology

According to a white paper from Solutions North, "Data Economics: LTO-9 Optimizing Data Value" (2023), LTO technology has a measurable Return on Investment of up to 1856% when compared to cloud storage and 501% compared to HDD.

HPE Storage Tape media brand qualification test procedures (load/unload, shoeshine, drop testing and environmental stress testing) surpass what is required for the industry standard LTO Ultrium media logo.

HPE brand qualification test procedures (load/unload, shoeshine, drop testing and environmental stress testing). This helps ensure greater reliability for restoring your data.

Ultra-reliable Storage Medium

HPE LTO-10 Ultrium data cartridges can write or read data at a blistering native 1.44 TB/hour, storing, encrypting, and protecting up to 75 TB* on a single cartridge. This makes them ideal for large-scale, 24×7, mission-critical IT environments (*capacity assumes 2.5:1 compression).

A 69% increase in the number of tracks has permitted a capacity increase from 45 TB for LTO-9 to 75 TB for LTO-10. From 8,960 tracks for LTO-8 30 TB cartridges to 15,104 tracks for LTO-10 75 TB cartridges (assuming 2.5:1 compression).

Lowest Total Cost of Ownership for Long-term Archiving

Standardizing on HPE Storage LTO Ultrium Cartridges delivers the capacity to meet shrinking backup windows, industry-standard, AES 256-bit encryption (IEEE1619.1), and interchangeable read-write (RW) or WORM media without extra space or IT resource overhead.

Superior smart grabber mechanism and mechanical interlock prevent the leader pin from being pulled inside the tape housing. Sensors detect proper connection and prevent leader loss that would ruin the tape. Simplified tape path to reduce wear, tear, and build-up of debris–crucial in automation.

Tape is more reliable than enterprise SATA disk, with an uncorrectable bit error rate (UBER) of 1×10 to the power of 20 for LTO-9 versus 1×10 to the power of 15 for SATA HDDs. This difference of five orders of magnitude means tape is 100,000 times more reliable than enterprise SATA HDD.

Open standard technology helps ensure compatibility across product generations and gives you more choice. HPE Storage LTO Ultrium Cartridges are available as custom labeled or non-custom labeled.

HPE offers a limited lifetime warranty for HPE Storage LTO Ultrium Cartridges, including up to 30 years of archival life, if stored at the recommended storage conditions. This helps businesses meet the ever-increasing demands of regulation for data retention and archiving.

The estimated amount of data written before the first error occurs is 125 TB for HDD and 12,500,000 TB for LTO-9.

Compatible products

• HPE Ultrium 3000 SAS Int Drv Bndl/TVlite
• HPE MSL4048 LTO7 15000 FC Lib Bdl/TVlite
• HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive
• HPE StoreEver LTO-8 Ultrium 30750 Internal Tape Drive
• HPE StoreEver LTO-8 Ultrium 30750 External Tape Drive
• HPE Ultrium 15000 SAS Int Drv Bdl/TVlite
• HPE 1/8 G2 LT06 SAS Autoload Bndl/Tvlite
• HPE 1/8 G2 LTO-6 Ult 6250 FC Autoloader
• HPE MSL4048 LTO7 15000 Lib Bdl/TVlite
• HPE StoreEver MSL2024 1 LTO-5 Ultrium 3000 SAS Library w/24 LTO-5 Media/TVlite
• HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive
• HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
• HPE 1/8 G2 LTO7 FC Autoload Bdl/TVlite
• HPE StoreEver MSL2024 LTO-7 15000 FC Library 24-cartridge Bundle/TVlite
• HPE LTO-6 Ultrium 6250 Int Tape Drive
• HPE Storage LTO-8 Ultrium Rack Mount Tape Drive 6x LTO-8 30TB Data Cartridges
• HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive
• HP StoreEver 1/8 G2 LTO-5 Ultrium 3000 F
• HPE 1/8 G2 LTO6 FC Autoloader/Tvlite
• HPE 1/8 G2 LTO-8 FC Tape Autoloader
• HPE StoreEver 1U Generic Rack Mount Kit
• HPE Storage MSL2024 Tape Library 1x MSL LTO-8 SAS Drive 15x LTO-8 30TB Data Cartridges
• HPE StoreEver MSL 1/8 G2 0-drive Tape Autoloader
• HPE StoreEver MSL2024 0-drive Tape Library
• HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 FC Tape Autoloader
• HP 1/8 G2 LTO-6 Ult 6250 SAS Autoloader
• HPE LTO-7 Ultrium 15000 Internal Tape Drive
• HPE StoreEver LTO-5 Ultrium 3000 SAS Internal Tape Drive
• HPE LTO-4 Ultrium Read/Write Bar Code Label Pack
• HPE StoreEver MSL2024 1 LTO-6 Ultrium 6250 SAS Library w/24 LTO-6 Media/TVlite
• HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 SAS Tape Autoloader
• HPE Ultrium 15000 SAS Ext Drv Bdl/TVlite
• HPE 1/8 G2 LTO5 FC Autoloader/Tvlite
• HPE 1/8 G2 LTO-8 SAS Tape Autoloader
• HPE 1/8 G2 LT05 SAS Autoload Bndl/Tvlite
• HPE StoreEver LTO-7 Ultrium 15000 TAA-compliant Internal Tape Drive
• HPE Storage MSL 1/8 Tape Autoloader 1x MSL LTO-8 SAS Drive 5x LTO-8 30TB Data Cartridges
• HPE StoreEver MSL2024 LTO-7 15000 SAS Library 24-cartridge Bundle/TVlite
• HPE LTO-6 Ultr 6250 Tape DR 1U Rackmount
• HPE Storage LTO-9 Ultrium Rack Mount Tape Drive 6x LTO-9 45TB Data Cartridges
• ACCESORII SERVER HP 1U SAS RACK MOUNT KIT AE459B
